HGA36125 | PowerPact H I-Line Circuit Breaker, ThermMagn, 125A, 3P, 600V, 18kA | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: HGA36125

Web Price:

$2,412.87
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

HGA36125 | PowerPact H I-Line Circuit Breaker, ThermMagn, 125A, 3P, 600V, 18kA | Square D by Schneider Electric

Square D | HGA36125
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HGA36125

Documents and manuals

Square D HGA36125 Documents

Overview

Details for HGA36125

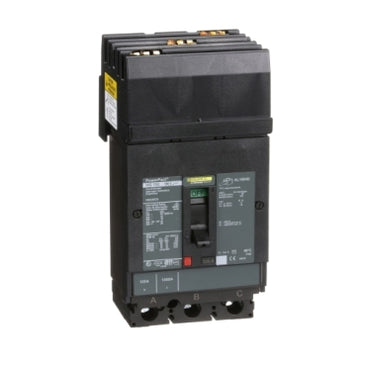

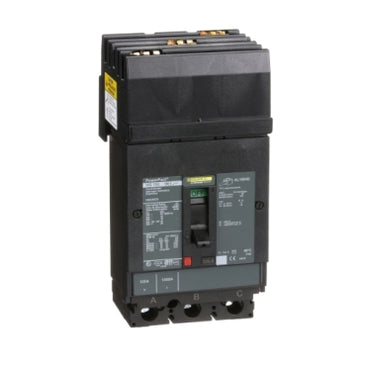

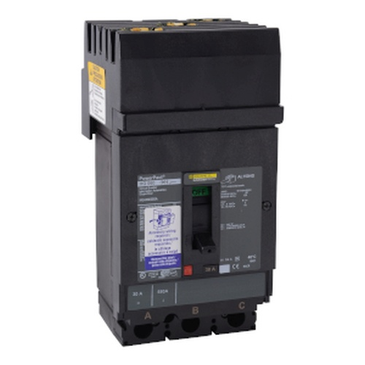

PowerPact H I-Line Circuit Breaker, ThermMagn, 125A, 3P, 600V, 18kA

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 125A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

range
PowerPact
product name
PowerPact H
Product or Component Type
Circuit breaker
Device Application
Distribution
Line Rated Current
125 A
Number of Poles
3P
protected poles description
3t
Control Type
Toggle
breaking capacity code
G
breaking capacity
65 kA 240 V AC 50/60 Hz UL 489;35 kA 480 V AC 50/60 Hz UL 489;18 kA 600 V AC 50/60 Hz UL 489;20 kA 250 V DC UL 489;20 kA 500 V DC UL 489
[Ue] rated operational voltage
690 V AC 50/60 Hz IEC 60947-3
Network Frequency
50/60 Hz
[Ics] rated service breaking capacity
65 kA 220/240 V AC 50/60 Hz IEC 60947-2;35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;18 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV IEC 60947-2
trip unit technology
Thermal-magnetic
magnetic tripping current
1700 A
magnetic hold current
900 A
continuous current rating
80 %
[Ui] rated insulation voltage
750 V IEC 60947-2
suitability for isolation
Yes IEC 60947-2
utilisation category
Category A
AWG gauge
AWG 14...AWG 3/0 aluminium/copper terminal
local signalling
Switched off (OFF) 1 trip indicator green)
mounting mode
I-Line bracket)
Mounting Support
Bracket
electrical connection
I-Line connection line;Lugs load
terminal identifier
AL150HD
Mounting Height
4.5 in (114.30 mm)
tightening torque
44.25 lbf.in (5 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10);123.91 lbf.in (14 N.m) 0.02…0.15 in² (10…95 mm²) (AWG 8...AWG 3/0)
number of slots
2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length
0.63 in (16 mm)
Color
Black
Height
6.42 in (163 mm)
Width
4.09 in (104 mm)
Depth
3.39 in (86 mm)
Net Weight
4.85 lb(US) (2.2 kg)
Quantity per Set
1
phase connection
ABC
communication interface
Modbus;Ethernet
circuit breaker application
HACR rated
quality labels
CE
Standards
UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications
UL;CSA;NOM
IP degree of protection
Front cover IP40 IEC 60529
pollution degree
3 IEC 60947-1
Ambient air temperature for operation
28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage
-58…185 °F (-50…85 °C)
operating altitude
< 6561.68 ft (2000 m) without derating;5000 m with derating
Category
01117-HG;HJ;JG;JJ I-LINE BREAKER/SWITCH
Discount Schedule
DE2
GTIN
785901939238
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
6.10 in (15.494 cm)
Package 1 Width
8.50 in (21.59 cm)
Package 1 Length
15.00 in (38.1 cm)
Package 1 Weight
5.41 lb(US) (2.455 kg)
Warranty
18 months
