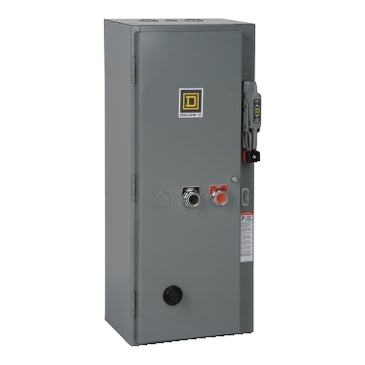

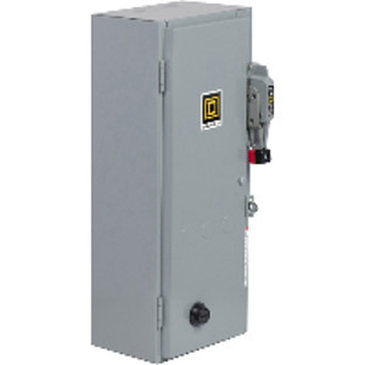

8538SDG14V02S | Type S Combination Starter with Disconnect Switch, Size 2, NEMA 1, 110V 50 Hz 120V 60Hz, 3-Poles, Non-Reversing | Square D by Schneider Electric

Type S Combination Starter with Disconnect Switch, Size 2, NEMA 1, 110V 50 Hz 120V 60Hz, 3-Poles, Non-Reversing

Type S Full Voltage Starter with Disconnect Switch

• NEMA Size: Size 2
• Degree of Protection: NEMA 1 General Purpose
• Control Circuit Voltage: 110V AC 50 Hz 120V AC 60 Hz
• Poles Description: 3-Poles
• Number of Phases: 3-Phase
• Control Circuit: Separate Control Circuit
• Motor Starter Type: Non-Reversing

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 25 HP at 480 and 600 VAC poly phase. Combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 22.5 inches tall, 10.5 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
