CP E0410YS1 + DM060S | 2 WAY Contoured Port Ball Valves | NPT Female Brass Body & Stainless Steel Ball | D series low voltage Actuators | 35 in.lb | 24V | Modulating | Electronic Fail Safe | Neptronic (OBSOLETE)

2 WAY Contoured Port Ball Valves | NPT Female Brass Body & Stainless Steel Ball | D series low voltage Actuators | 35 in.lb | 24V | Modulating | Electronic Fail Safe

Description

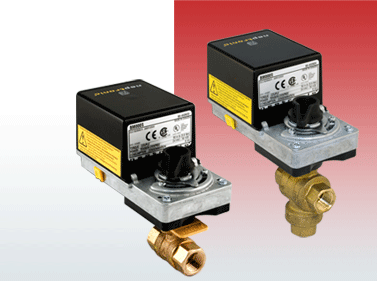

The Contoured Port Series are actuated Ball Valves that can provide digital or analog control of hot and chilled water systems containing up to 50% glycol. Each unit is comprised of a rotary actuator and linkage assembly coupled to a valve body that offers positive close off and low torque. The Contoured Port Ball, incorporates an integral permanently attached glass filled polymer to achieve a wide range of Cv’s by offering a variety of orifices. Valve sizes range from 1/2 inch to 3 inches with a Close-Off pressure of 100 PSIG. These low profile, compact units can be installed with ease in the often tight, restricted areas found in unit ventilators, fan coils, terminal reheat coils and larger air handlers.
