HCO-1103 | Enclosure: | KMC

Enclosure:

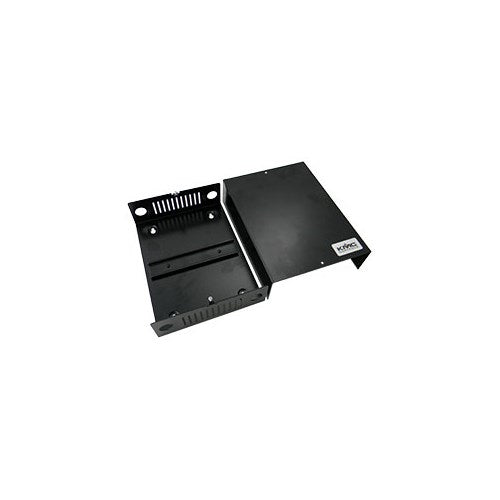

This economical two-part steel enclosure is designed to contain a KMC Conquest general purpose or unitary controller. It can also contain other DIN-rail-mounted devices no larger than 9.5 x 2 x 7 inches (241 x 51 x178 mm).

The HCO-1103 provides RF shielding and physical protection of a controller and its connections.

Features include:

• Integrated 35 mm DIN rail for easy controller mounting
• Made of 18-gauge (base) and 22-gauge (cover) steel
• Black powder coat finish
• 10-1/8 x 2-5/8 x 7-19/32 inches (257 x 67 x 193 mm)
• Four holes for conduit fittings (3 for 1/2-inch conduit and 1 for 3/4-inch conduit)
• Mounts to a flat surface with four screws
• Cover secured by two (included) 6-32 machine screws

The HCO-1103 is designed for the following KMC Conquest controllers:

• BAC-5900 series general purpose controllers
• BAC-9300 series unitary controllers
• CAN-5900 series expansion modules

NOTE: The BAC-5051 router and BAC-9000 series VAV controllers do not fit into this enclosure.
