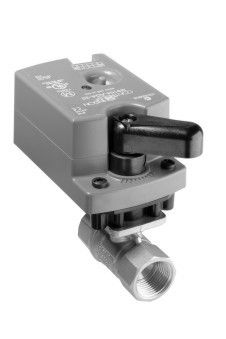

VG1245CN+9T4GGA | 1" 2W BALL VALVE 11.7CV; SS TRIM NON-SPRING RET VA9104-GGA-3S NO SWITCH 0-10V PROPORTIONAL | Johnson Controls
Documents and manuals
Johnson Controls VG1245CN+9T4GGA Documents
Overview
Details for VG1245CN+9T4GGA
1" 2W BALL VALVE 11.7CV; SS TRIM NON-SPRING RET VA9104-GGA-3S NO SWITCH 0-10V PROPORTIONAL
Description
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two- and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104 and VA9300 Series Non-SpringReturn and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating or proportional control.
Features
- Forged Brass Body — provides 580 psig static pressure rating.
- 200 psi Closeoff Pressure Rating — provides tight shutoff.
- 300 Series Stainless Steel Ball and Stem Assembly — tolerates high-temperature water or 15 psi saturated steam with fluid temperatures of -22°F to 284F (-30°C to 140C) or where a higher degree of corrosion protection is desired.
- 500:1 Rangeability — provides accurate control under all load conditions.
- 1" 2-Way Characterized Control Valve
- Hot Water Chilled Water Up To 50% Glycol / -22?F to 212?F
- CV 11.7
- 24 VAC
- Proportional [0(2) to 10 VDC]
- Non-Spring Return
- 35 in-lb Torque
- M3 Screw Terminals
- Female NPT
- 60 sec Runtime
- Close-Off 200 psi
- Stainless Steel Ball & Stem
- NEMA 1
Specifications
Item Number | VG1245CN+9T4GGA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | Modulating |
Control Valves Type | Ball Valve |
Section | Ball 2-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Non-Spring Return |
SubCategory | Ball 2-Way w/ Electric Actuator |
Valve Size | 1 - 2-Way |
Voltage | 24V |
