VA9104-AGA-2S | ELECTRIC VALVE ACTUATOR; BSRM FKIATUBG CTL; NO SW; W/48" CABLE | Johnson Controls

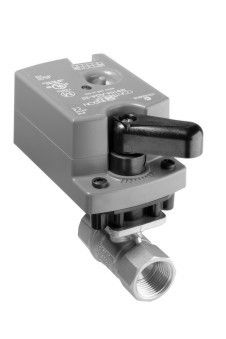

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VA9104-AGA-2S
Documents and manuals
Johnson Controls VA9104-AGA-2S Documents
Overview
Details for VA9104-AGA-2S
ELECTRIC VALVE ACTUATOR; BSRM FKIATUBG CTL; NO SW; W/48" CABLE
The VA9104 Series Actuators are direct-mount, non-spring return electric valve actuators that operate on AC 24 V power. These synchronous, motor-driven actuators are used to provide accurate positioning on Johnson Controls® VG1000 Series DN15, DN20, and DN25 (1/2, 3/4, and 1 in.) ball valves in HVAC applications. The VA9104 Series Electric Non-Spring Return Actuators provide a running torque of 35 lbin (4 Nm). The nominal travel time is 60 seconds at 60 Hz (72 seconds at 50 Hz) for 90° of rotation.- Valve Actuator
- Non-Spring Return
- 35 lb-in
- On/Off & Floating Point Without Timeout
- 24 VAC
- 48 in. Cable
Specifications
Item Number | VA9104-AGA-2S |
Brand | Johnson Controls |
Actuator Type | Valve |
Category | Valves & Valve Actuators |
Section | Electric Valve Actuators |
Section | Valves & Actuators |
SubCategory | Electric Valve Actuators |
