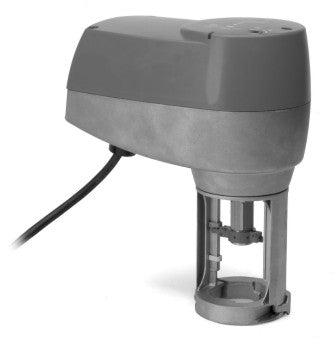

VA7830-HGA-2 | O TO 10 VDC PROP.CONTR.; O TO 10 VDC PROP.CONTR. 2 | Johnson Controls
Documents and manuals
Johnson Controls VA7830-HGA-2 Documents
Overview
Details for VA7830-HGA-2
O TO 10 VDC PROP.CONTR.; O TO 10 VDC PROP.CONTR. 2
Description
The VA7800 Series of electric valve actuators control VG7000 Series Bronze Globe Valves in HVAC systems. The VA7800 Series produces a minimum linear output force of 180 lb (800 N) and is ordered field mounted or factory coupled to 1 in. and 2 in. VG7000 Series Bronze Globe Valves with brass trim and to 1/2 in. through 2 in. VG7000 Series Bronze Globe Valves with stainless steel trim. All actuators are direct mount and available in both Spring Return and Non-Spring Return models.
Spring-return models ship from the factory set for DC 0 to 10 V Proportional Control. With a change of DIP switch settings, this model can be field configured to On/Off or Floating Control. In addition to these settings, optional auxiliary switches are also available.
Non-spring-return models are available in AC 24 V On/Off (Floating) Control, or DC 0 to 10 V Proportional Control. Models are available with or without optional auxiliary switches.
Refer to the VA7800 Series Electric Valve Actuators Product Bulletin (LIT-12011474) for important product application information.
- Valve Actuator
- Spring Return
- 180 lb-in
- Spring Return
- Proportional
- Extended Valve Stem
- 0-10 VDC Feedback
Specifications
| Item Number | VA7830-HGA-2 |
| Brand | Johnson Controls |
| Actuator Type | Damper |
| Category | Valves & Valve Actuators |
| Section | Electric Valve Actuators |
| Section | Valves & Actuators |
| SubCategory | Electric Valve Actuators |
