TE-631AM-1; WELL; 1000 OHM NICKEL WELL INSERTION 6 INCH PROBE

Description

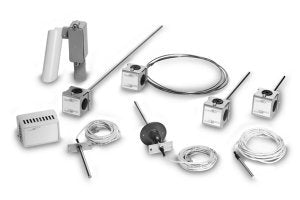

The TE-6300 Temperature Sensor line provides economical solutions for a wide variety of temperature sensing needs, including wall-mount, outdoor-air, duct, strap-mount, well-insertion, duct-averaging, and VAV Modular Assembly (VMA) flangemount duct-probe applications. The TE-6300 line offers both a metal and a plastic enclosure for the most popular models. Sensors are available in the following types:

• 1k ohm thin-film nickel
• 1k ohm nickel averaging
• 1k ohm thin-film platinum
• 100 ohm platinum equivalent averaging
• 1k ohm platinum equivalent averaging
• 2.2k (2,252) ohm thermistor
• 10k ohm thermistor, Johnson Controls® Type II

Features and Benefits

• Each sensor is packaged with the necessary mounting accessories to maximize ordering and installation ease and to reduce both commissioning time and cost.
• Full Line of Versatile Sensors—Supports all your temperature sensing needs from a single supplier: wall-mount, outdoor-air, duct, duct-averaging, strap-mount, wellinsertion, and flange-mount duct-probe.
• Single Assembly Ordering—Simplifies ordering; provides a complete assembly in one box.
• Models Featuring an Integral National Pipe Thread (NPT) Adaptor—Increase sensor connection strength, which eliminates the need for a special adaptor.
• Models with a Stainless Steel Sensor Probe—Protect the sensor while increasing corrosion resistance.
• come with a corrosion-protected steel enclosure with a 0.88 in. (22 mm) hole for a 1/2 in. (12.7 mm) conduit fitting
• include two hex-head self-drilling screws for mounting the duct and duct-averaging models
• offer either a direct-mount or 1/2-14 NPT threaded well sensor holder for mounting in TE-6300W Series Thermowells (well models; order the thermowell separately)
• provide optional well sensor holders (order separately) to mount duct models in thermowells
• meet UL 1995 plenum use requirements
• offer optional accessory kit (order separately) to replace plastic hole plug and wiring bushing to meet International Mechanical Code (IMC) requirements

• Thermowell
• 6 in. Probe Length
• 1K Ohm Nickel RTD
