P499RCP-105C | PRESSURE TRANS 0-500 PSIG; 0.4 TO 4.5 VDG RATIOMETRIC OUTPUT SIGNAL 1/4 SAE INTERNAL FEMALE FLARE | Johnson Controls

PRESSURE TRANS 0-500 PSIG; 0.4 TO 4.5 VDG RATIOMETRIC OUTPUT SIGNAL 1/4 SAE INTERNAL FEMALE FLARE

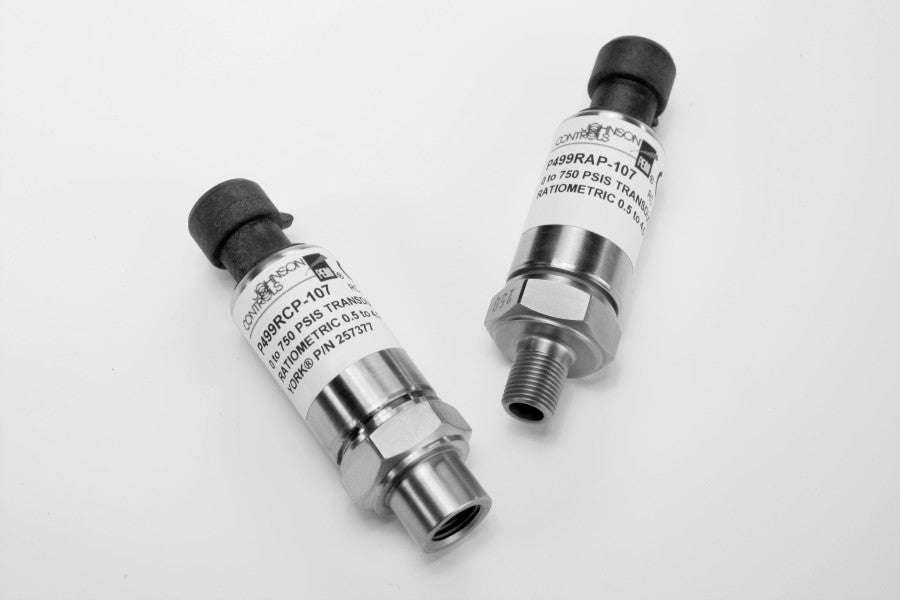

The P499 Series Electronic Pressure Transducers are compact, economical, rugged, direct-mount pressure transducers designed for use in commercial refrigeration and air conditioning applications. These transducers produce an analog signal based on the sensed pressure. The P499 Series transducers feature environmentally protected electronics with stainless steel construction. The digitally compensated P499 transducers are highly accurate over a broad temperature range, resisting the effects of wide ambient temperature swings, high humidity, condensation, and icing. The pressure port is machined from a solid piece of 17-4PH stainless steel. No O-rings, organic materials, or welds are exposed to the pressure media, allowing for a leak-proof, all-metal, sealed pressure system. The P499 transducers operate with any corrosive or non-corrosive pressure medium that is compatible with 17-4PH stainless steel, including water, condensate, carbon dioxide, glycol, most refrigerants, including ammonia, and many other compatible fluids and gases.
