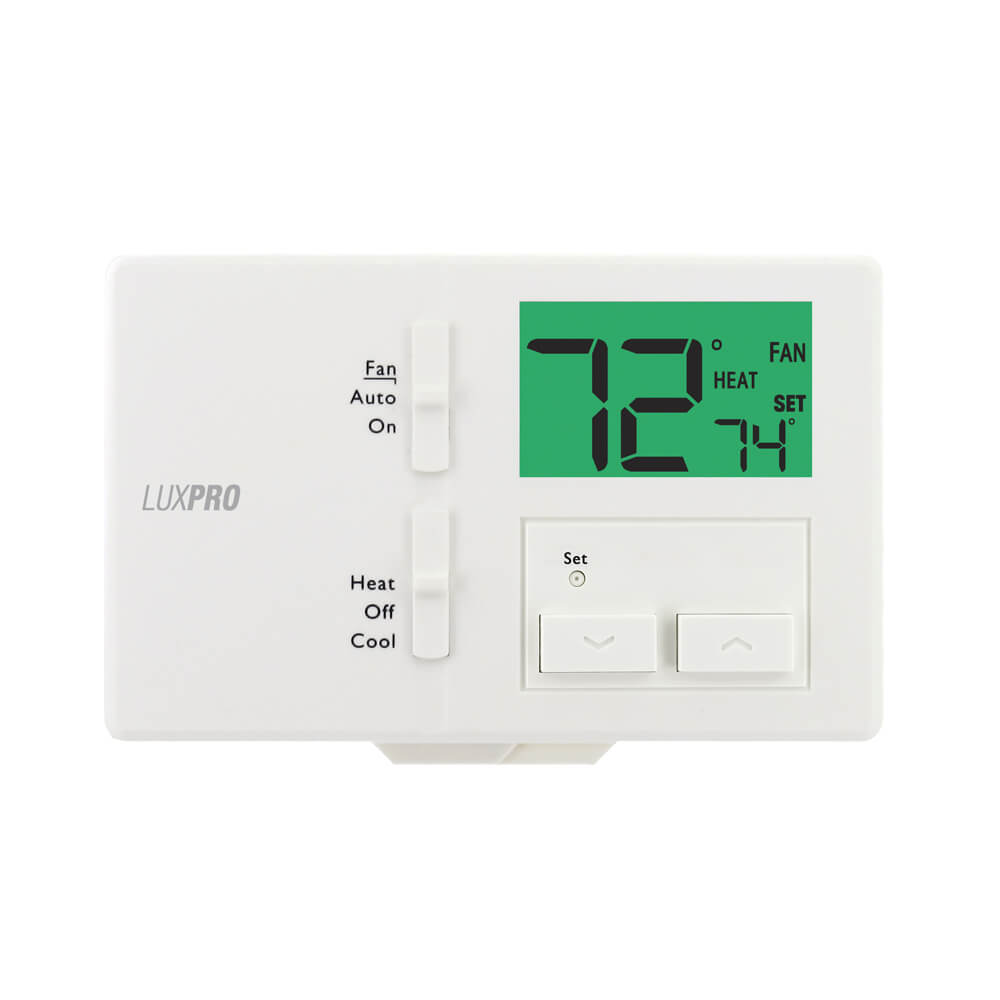

P111-010 | 1h/1c: Gas, Oil, Elec, MV, HP; Dual power; Temp limits; Lockout | Johnson Controls
Documents and manuals
Johnson Controls P111-010 Documents
Overview
Details for P111-010
1h/1c: Gas, Oil, Elec, MV, HP; Dual power; Temp limits; Lockout
Features
• Easy installation
• Non-programmable only
• Easy-view back light
• Optional wall plate model #WP567
• Keypad lock for unauthorized use
• Dual powered (2AA) Alkaline Batteries (included)
• Temporary Compressor protection bypass
• 5/2 minute selectable time delay for equipment protection
• User temperature calibration
• Display option: fahrenheit or celsius temperature
• Adjustable heating and cooling limits
• Adjustable temperature differential/swing
Our job-friendly, non-programmable value thermostat with features you might not expect!
• Non-programmable only
• Dual Powered
• Adjustable heating and cooling limits
• 5 Year limited Warranty
Compatible With:
• For most 24V heating and A/C systems
• 1-heat/1-cool: gas, oil, electric or single stage heat pump systems
• 2-wire heat only hydronic systems (hot water baseboard & radiator)
• Millivolt systems (wall heaters/furnaces & gas fireplaces)
Not Compatible With:
• Multi-stage heating & AC systems
• Multi-stage heat pumps
• 3-wire hydronic zone valve systems
• 120V/240V line voltage systems (without transformer)
Specifications
| Item Number | P111-010 |
| Brand | Johnson Controls |
| 1 Thermostat | Non-Programmable |
| Display | Yes |
