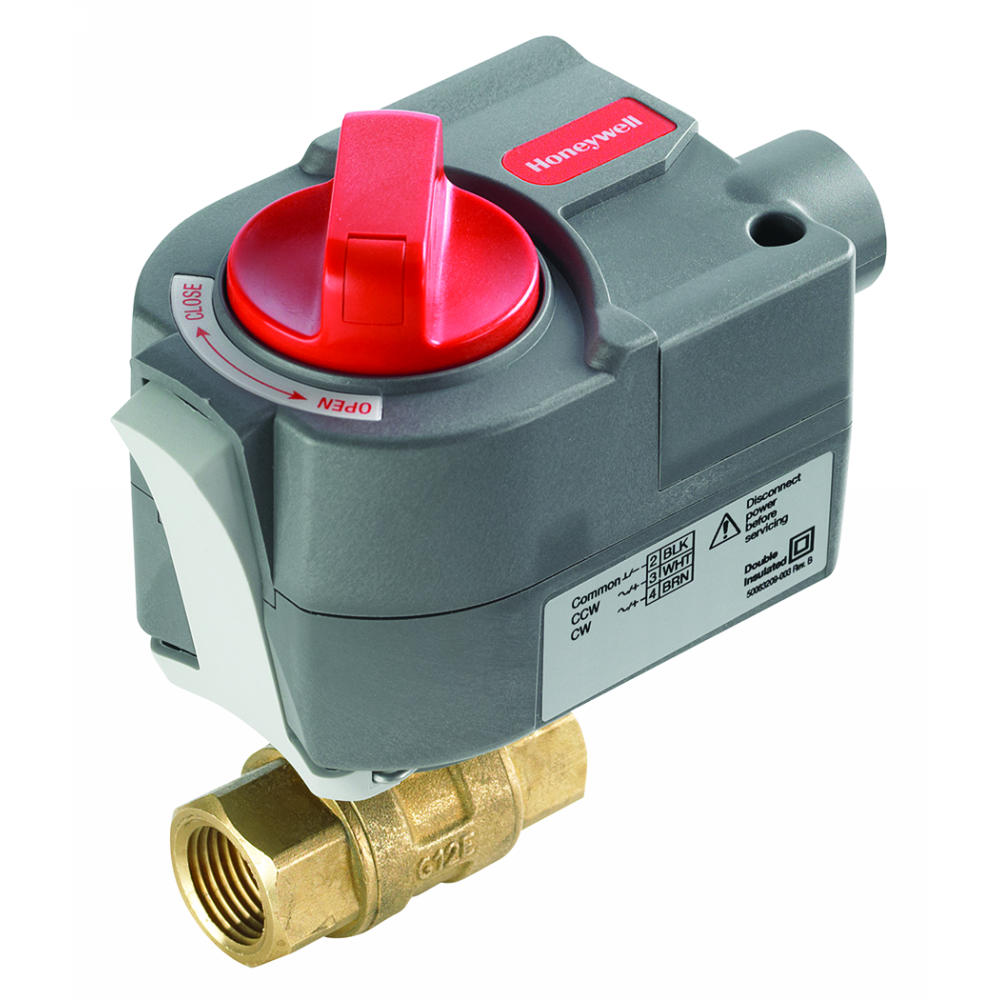

ELECTRIC ACTUATOR - FAST ACTING SPDT FLOATING ON/OFF (FAIL IN PLACE) - LOW PROFILE - 24 VAC

Application

The VBN2 Two-Way and the VBN3 Three-Way Control Ball Valves control hot and chilled water with glycol solutions up to 50% in heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating functions. These valve assemblies can be ordered with or without factory-mounted fail in place or fail safe actuators.

Flow Characteristics

The VBN2 Two-Way Ball Valves have:

• an equal percentage flow characteristic with characterized flow control insert.

The VBN3 Three-Way Ball Valves have:

• between ports A and AB: an equal percentage flow characteristic.
• between ports B and AB: a linear flow characteristic.
