PCS30 | PCS30 Model Actuator, Air-to-Spring, Rack & Pinion, fits 3" - 6" TN & HCLA-90 Series / 4" Butterfly Valves w / Man. Override | Hayward | Hayward

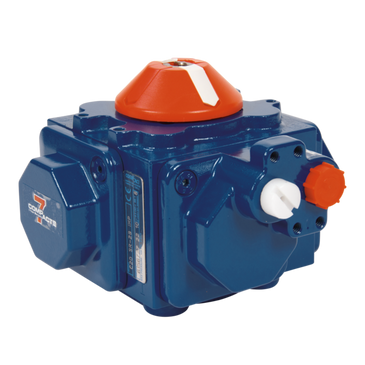

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PCS30

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward PCS30 Documents

Datasheet More Info

Overview

Details for PCS30

PCS30 Model Actuator, Air-to-Spring, Rack & Pinion, fits 3" - 6" TN & HCLA-90 Series / 4" Butterfly Valves w / Man. Override | Hayward

• Double Acting Air-to-Open and Close or
• Spring Return Fail-Safe Operation
• For All Sizes of Ball and Butterfly Valves
• Four-Piston Rack and Pinion Design
• Manual Override
• Compact, Lightweight
• Position Indicator
• Namur-Style Solenoid Mounting (Inlet/Outlet)
• Adjustable Travel Stops
• ISO5211 Mounting Base

Specifications

Item Number	PCS30
Brand	Hayward
Action Type	Single Acting Fail-Safe
Actuator Type	Pneumatic
Air Consumption	33 cu. In.
Air Transfer	Internal
Airport Connections	1/4 in NPT
Category	Actuation & Controls
Chassis	PCS
Class	Pneumatic Actuators & Accessories
Housing Material	Epoxy-Coated Aluminum
Iso Flange	F07
Max Air Pressure	120 PSI
Min Air Pressure	80 PSI
Operation Type	Spring Return Fail-Safe
Output Shaft	Plated Steel
Series	PC Series Pneumatic Actuators
Sub Category	Pneumatic Actuators & Accessories
Subtype	Pneumatic Actuators
Torque Rating	345 in/lbs
Type	Hayward Actuation
