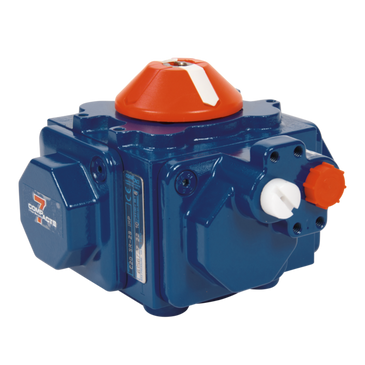

PCD20 | PCD20 Model Actuator, Air-to-Air, Rack and Pinion, fits 2-1/2" - 6" TBH & CVH Series and TN & HCLA-90 Series / 2" - 3" Butterfly Valves, w/ Man. Override | Hayward | Hayward

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PCD20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward PCD20 Documents

Datasheet More Info

Overview

Details for PCD20

PCD20 Model Actuator, Air-to-Air, Rack and Pinion, fits 2-1/2" - 6" TBH & CVH Series and TN & HCLA-90 Series / 2" - 3" Butterfly Valves, w/ Man. Override | Hayward

• Double Acting Air-to-Open and Close or
• Spring Return Fail-Safe Operation
• For All Sizes of Ball and Butterfly Valves
• Four-Piston Rack and Pinion Design
• Manual Override
• Compact, Lightweight
• Position Indicator
• Namur-Style Solenoid Mounting (Inlet/Outlet)
• Adjustable Travel Stops
• ISO5211 Mounting Base

Specifications

Item Number	PCD20
Brand	Hayward
Action Type	Double Acting
Actuator Type	Pneumatic
Air Consumption	9.2 cu. In.
Air Transfer	Internal
Airport Connections	1/4 in NPT
Category	Actuation & Controls
Chassis	PCD
Class	Pneumatic Actuators & Accessories
Housing Material	Epoxy-Coated Aluminum
Iso Flange	F05
Max Air Pressure	120 PSI
Min Air Pressure	80 PSI
Operation Type	Double Acting
Output Shaft	Plated Steel
Series	PC Series Pneumatic Actuators
Sub Category	Pneumatic Actuators & Accessories
Subtype	Pneumatic Actuators
Torque Rating	311 in/lbs
Type	Hayward Actuation
