HRCB7BT1K1KANTM | HRCB7B 140000 in/lbs 480 On/Off NEMA/4/4X/IP67 LCS/CB/2AX | Hayward

Hayward | HRCB7BT1K1KANTM

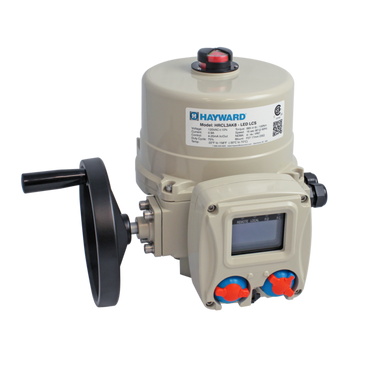

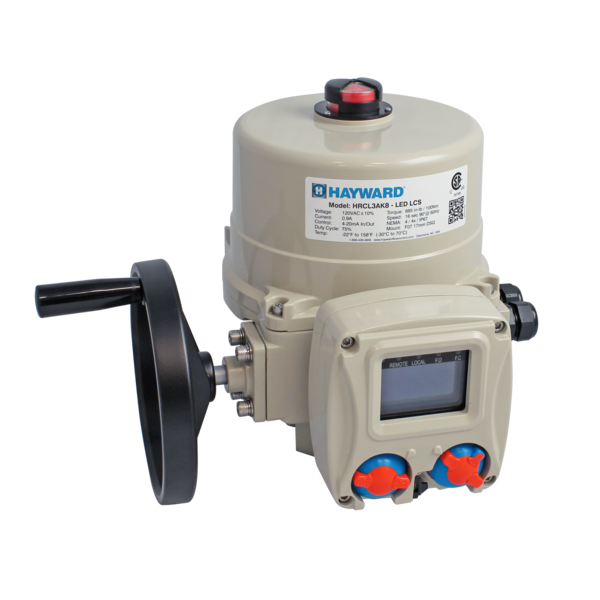

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HRCB7BT1K1KANTM

Documents and manuals

Hayward HRCB7BT1K1KANTM Documents

Overview

Details for HRCB7BT1K1KANTM

HRCB7B 140000 in/lbs 480 On/Off NEMA/4/4X/IP67 LCS/CB/2AX

Hayward’s HRC Series electric actuators are designed and produced to provide years of service in demanding industrial environments such as chemical processing, waste and water treatment, power generation, oil & gas, marine, mining, and building services. The HRC Series incorporates Local Control System (LCS) functionality which allows for operator control of the actuator at the actuator. The LCS systems range from basic knob-type control to full-featured LCD submersible solutions. These quarter-turn units drive dampers, ball valves, butterfly valves, or inlet guide vanes that require torque ranges from 300 in-lbs up to 177,000 in-lbs. The HRC Series housings are designed to meet NEMA 4X environmental demands, with ISO5211 compliant mounting that readily attaches to most valves in the industries served. The HRC2 Series is a compact multi-stage gear train with a lever-less manual override system built in. The HRC3+ Series features an epicyclic transmission system that provides highly efficient multiplication of motor power to produce uniquely compact torque ranges compared to other technologies. A clutch-free manual override system provides full-time override capabilities during powered or un-powered events, and the LCS allows for simple adaptation for overhead chain-wheel drive installations.


• Local Control Stations allow stand-alone or isolated operation from PLC systems
• CK Type has Knob/Key Type Switches
• CB Type has Knob/Knob Type Switches
• CL Type has LED Indicators
• CD Type has Full LCD Display
• 120VAC operation standard, with 24VAC/VDC, 230VAC options available
• Units equipped with two (2) volt-free Form A Auxiliary switches
• Anti-Condensate heater standard
• ISO5211 compliant mechanical mount w/ double-square female drive socket
• EMT port(s) for ease of field wiring
• NEMA 4/4x/IP67 Compliant
• Raised visual position indicator in high contrast red/green color
• Clutchless Hand Wheel override standard on most models
• Collapsible spinner handle option available

Specifications

Item Number HRCB7BT1K1KANTM
Brand Hayward
Actuator Type Electric
Category Hayward Actuation
Chassis Option LCS-CB with (2) Aux Switches
Chassis HRCB7B
Class
Control On/Off
Cycle Speed Sec 60hz Dc 108 sec
Duty Cycle 0.25
Lra Current 4 amps
Motor Watts 400W
Power Type 3 Phase
Run Current 1.6 amps
Start Current 2.2 amps
Subtype HRS Series On Off Proportional Electric Local Control Actuators
Suby Category HRS Series
Torque Rating 140000 in/lbs
Voltage 480
Wiring Diagram Filename WD73TS-3PH
