TR150VA001 | Transformer 150VA, 120-24V, single hub, UL List US/Canada, Circ. Bkr. | Functional Devices

Transformer, 150VA, 120 to 24 Vac, Circuit Breaker, Foot and Single Threaded Hub Mount

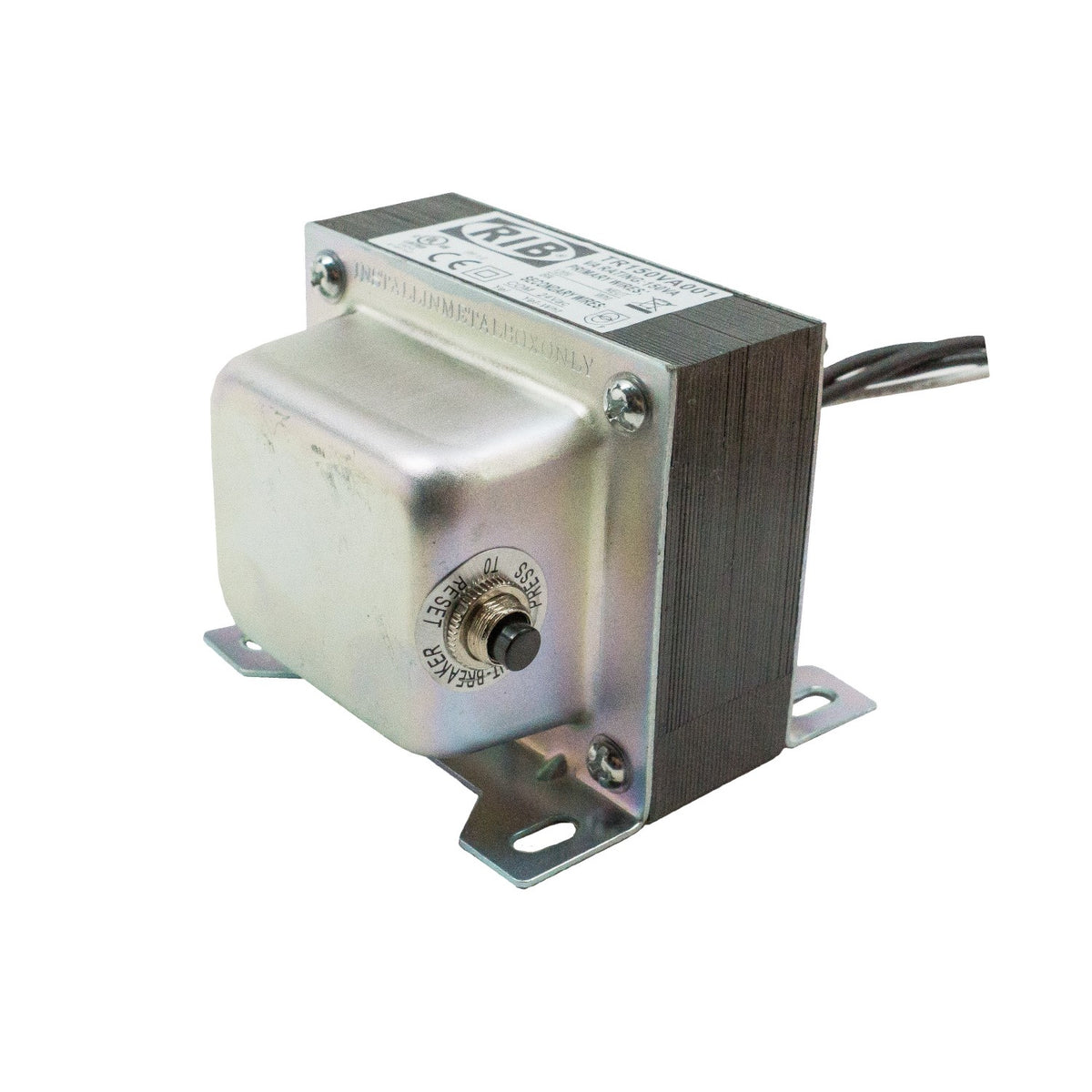

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TR150VA001

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Functional Devices TR150VA001 Documents

Datasheet Installation Instructions More Info

Overview

Details for TR150VA001

Transformer 150VA, 120-24V, single hub, UL List US/Canada, Circ. Bkr.

Specifications

VA Rating: 150
Frequency: 50/60 Hz
Mounting: Foot & Single Threaded Hub
Over Current Protection: Circuit Breaker
Dimensions: 3.650˝ x 3.800˝ x 3.183˝ (w/ .500˝ NPT Hub)
Wire Length: 9.5˝ Typical w/ .5˝ Strip
Operating Temperature: -30 to 140° F
MTBF: 100,000 Hours @ 77° F
Construction: Split-Bobbin
Approvals: UL5085-2 Listed General Purpose, C-UL, CE, RoHS
