EnOcean 902 MHz Wireless Relay, Receiver / Repeater, 5 Amp SPST-N/O, 120 Vac Power Input, NEMA 1 Housing
Documents and manuals
Functional Devices RIBW01C-EN3 Documents
Overview
Details for RIBW01C-EN3

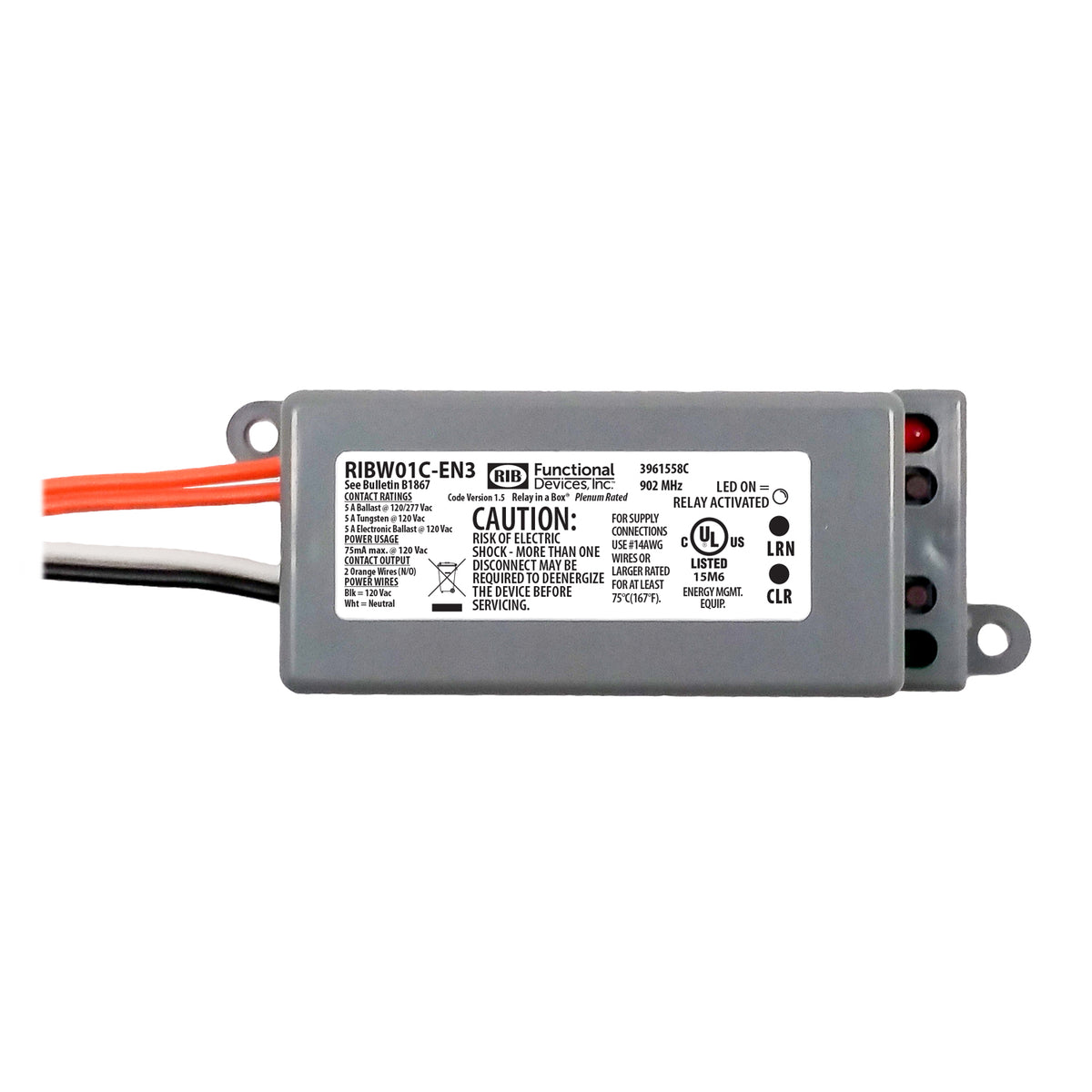

EnOcean 902 Mhz Enclosed Relay 5Amp 120Vac Wireless
Specifications
# Relays & Contact Type: One (1) SPST Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Red LED: Relay Status / Learn Mode Status (Flashing)
Dimensions: 4.60˝ x 1.20˝ x 1.70˝
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL916, C-UL, RoHS
Agency Compliance: FCCID: SZV-TCM320U
IC: 5713A-TCM320U
Gold Flash: No
Override Switch: No
Frequency: 902 MHz
Receiver Sensitivity: -93 dBm typical
Conducted Power: 5 mW typical
Built-in Switch Modes: Alarm, Repeater, Delay, Rocker, Momentary, and Toggle
Contact Ratings:
5 Amp Ballast @ 120/277 Vac
5 Amp Tungsten @ 120 Vac
5 Amp Electronic Ballast @ 120 Vac
Power Input Ratings:
75 mA @ 120 Vac ; 60 Hz
Specifications
Item Number | RIBW01C-EN3 |
Brand | Functional Devices |
Network | EnOcean |
