Overview
Details for RIBTW2402B-BC

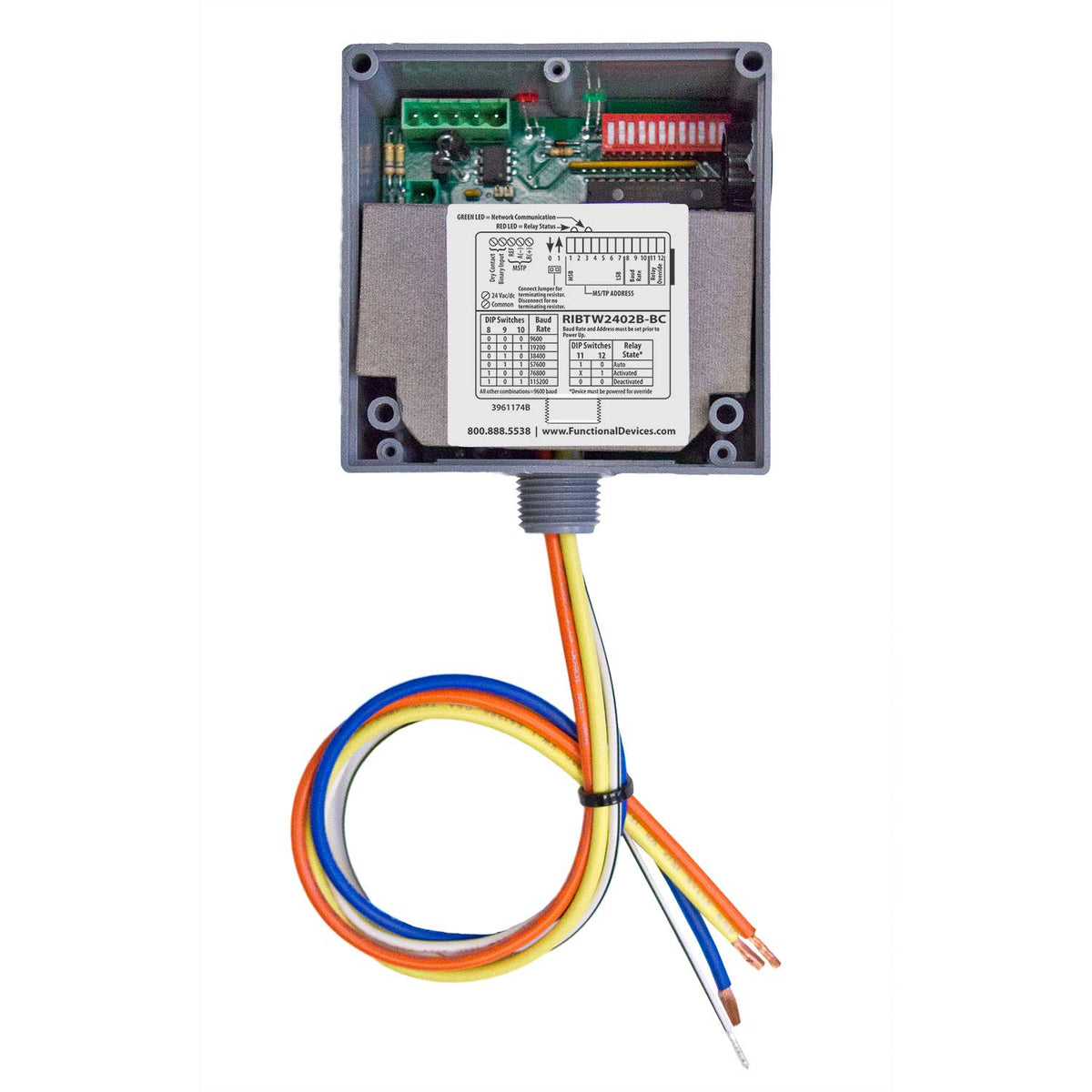

BacNet Enclosed Relay 20Amp SPDT 24Vac/dc/208-277Vac with 1 digital input
Specifications
# Relays & Contact Type: One (1) SPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 18ms
Green LED: Network Communication
Red LED: Relay Status
Dimensions: 4.00˝ x 4.00˝ x 1.80˝ with .50˝ NPT Nipple
Wires: 16˝, 600V Rated
Approvals: CE, UL Listed, UL916, C-UL, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: No
Relay Override Switch: DIP Switch Control
Network Media: Twisted Pair 22-24AWG, shielded recommended
Terminations: Functional Devices product installed at both ends of the MS/TP network – Use 120 Ω end of line resistors. All other cases – Follow instructions from the device installed at the end of the MS/TP network.
Polarity: Network is polarity sensitive
Baud Rate: 9600, 19200, 38400, 57600, 76800, 115200 (DIP Switch Selectable)
Contact Ratings:
20 Amp Resistive @ 277 Vac
20 Amp Ballast @ 277 Vac
16 Amp Electronic Ballast @ 277 Vac (N/O)
10 Amp Tungsten @ 120 Vac (N/O)
1110 VA Pilot Duty @ 277 Vac
770 VA Pilot Duty @ 120 Vac
2 HP @ 277 Vac
1 HP @ 120 Vac
Power Input Ratings:
81 mA @ 24 Vdc
111 mA @ 24 Vac
121 mA @ 208-277 Vac
Power Input:
24 Vac/dc ; 208-277 Vac ; 50/60 Hz
Specifications
Item Number | RIBTW2402B-BC |
Brand | Functional Devices |
Network | BacNet |
