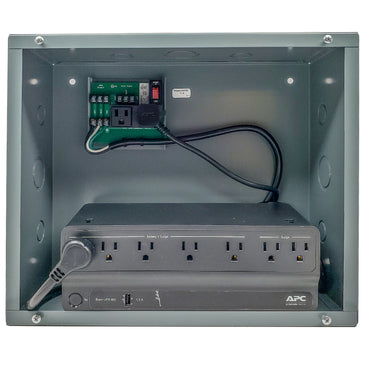

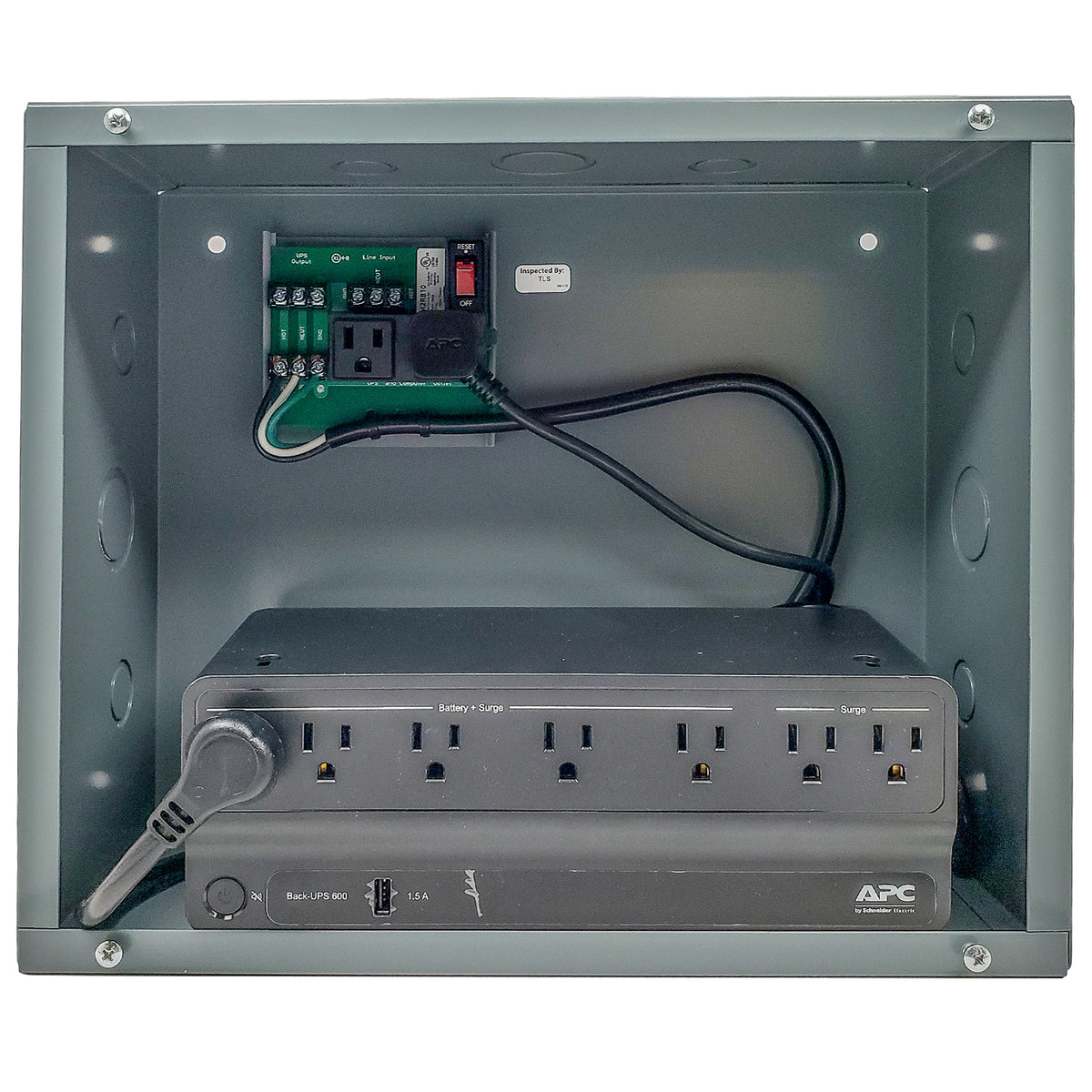

PSH600-UPS | Enclosed UPS Interface board w/ 600VA UPS | Functional Devices

600VA UPS Backup Power Control Center, 12" x 14" x 6" Metal Enclosure

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PSH600-UPS

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Functional Devices PSH600-UPS Documents

Datasheet Installation Instructions More Info

Overview

Details for PSH600-UPS

Enclosed UPS Interface board w/ 600VA UPS

Specifications

UPS

UPS: 600VA
Backup Time: 2.5 Min. @ Full 600 VA Load 10 Min. @ 1/2 Load
Power Consumption: Up to 3 Amp @120 Vac
Max Load: 330 Watt
Frequency: 50/60 Hz
Temperature Rating of UPS: 32 to 104° F
UPS Transfer Time: 6ms
Approvals: UL Listed, UL1778

PSH2RB10

Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Main Breaker ON/OFF: Switch / Breaker (10 Amp)
Approvals: UL Listed, UL916, C-UL, CE, RoHS
Dimensions: 12.000˝ x 14.000˝ x 6.000˝ Metal Housing with Screw Cover
