Strap on surface mounted temperature sensor, 10 KΩ Type II Thermistor
Documents and manuals
Dwyer TE-SNW-B Documents
Overview
Details for TE-SNW-B
Strap on surface mounted temperature sensor | 10 KΩ Type II Thermistor
Series TE-SNW Weather Resistant Surface Temperature Sensors

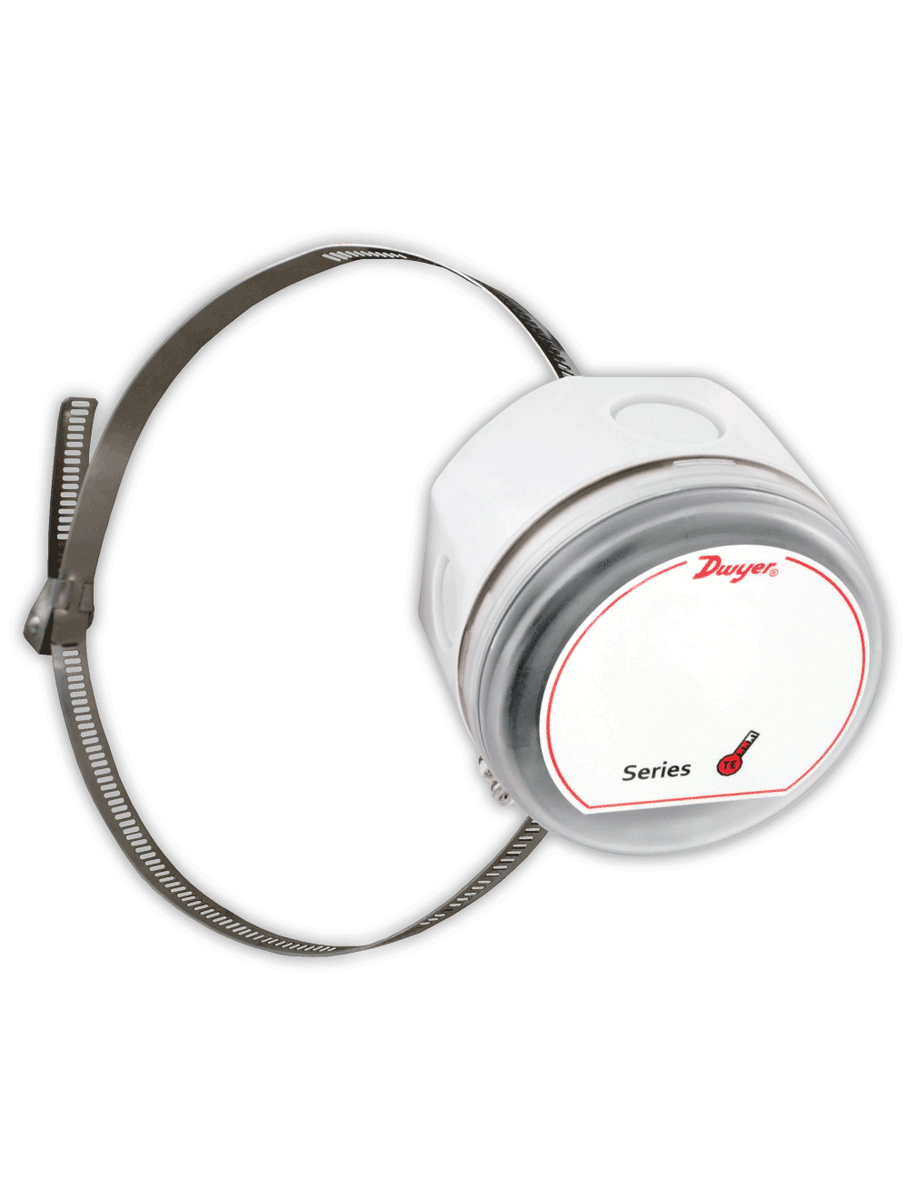

The Series TE-SNW Weather Resistant Surface Temperature Sensors non-intrusively measures theprocess temperature in hot and cold water loops in buildings. An adjustable metal strapcan tightly fit around 2 through 6" pipe sizes, allowing the surface area of the copper plateon the sensor to make good contact with the pipe surface. In order to work with mostcommon building controllers, the output of the sensor can be chosen from 6 different RTDand Thermistor curves. Additional features include a quarter turn twist off cap that ischained to the housing to prevent it from getting lost, and multiple knockout locations andsizes to reduce installation time.
Product Applications
- Heating or cooling loop line temperature monitoring
- HVAC systems
- Easy to mount external tab housing
- 1/4 turn housing cover with chain
- Multiple conduit knockouts for easy installation positioning
- Non-intrusive temperature measurement of 2 to 6" pipes
Specifications
- Series
- TE-SNW Weather Resistant Surface Temperature Sensors
- Accuracy
- >Thermistor temperature sensor: ±0.22°C @ 25°C (±-0.4°F @ 77°F);RTD temperature sensor: DIN Class A ±0.15°C @ 0°C (±0.28°F @ 32°F).
- Temperature Limits
- Operating: -32 to 240°F (-35.5 to 115.5°C).
- Sensor Curves
- See Resistance vs. Temperature Table.
- Housing Material
- Meets UL 94 V-0 polycarbonate plastic; NEMA 3R.
- Weight
- 7 oz (198 g).
