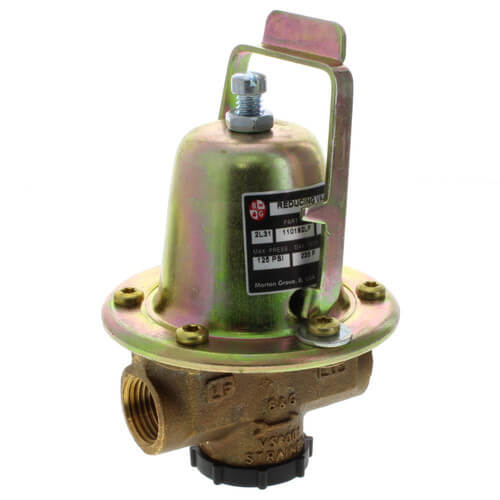

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 110192LF

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 110192LF Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 110192LF

FB-38 1/2" Pressure Reducing Valve (Lead Free)

Reducing valves fill the system to a preset pressure for optimum performance. Combination Dual Unit Valves include pressure reducing valve and relief valve.

Features:

This product contains a fast fill feature, which reduces start-up time and labor.
Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure.
Union connection available with 1/2" male NPT thread and 1/2" female sweat tail-piece for fast, flexible system connection.
Brass body construction is highly resistant to corrosion-ideal for water systems.

Specifications

Item Number	110192LF
Brand	Bell & Gossett
Application	Heating
Connection Type	FNPT x FNPT
Lead Free	Yes
Material	Brass
Max Inlet Pressure	125 PSI
Max Pressure (PSIG)	25
Min Pressure (PSIG)	10
Pressure Set Point	12 psig
Size	1/2"
SubType	Boiler Fill Valve
SubType	Pressure Reducing Valve
Temperature Range (F)	225°F Max
Type	Pressure Valve
