110033 | 3301-30 3301K Relief Valve | Bell & Gossett

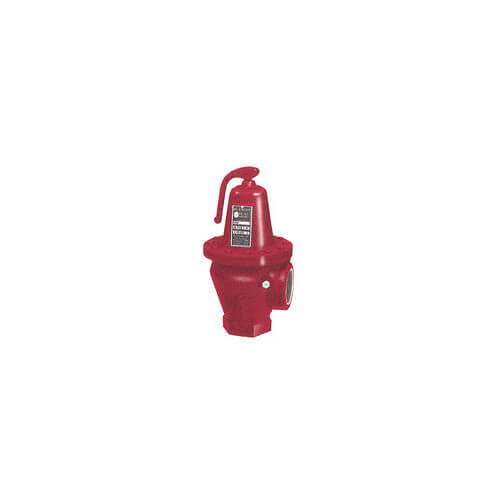

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 110033
Documents and manuals
Bell & Gossett 110033 Documents
Overview
Details for 110033
3301-30 3301K Relief Valve
ASME Safety Relief ValvesProtect fired and unfired hot water vessels against hazardous operating pressures.
Engineered in accordance with Section IV of the ASME boiler and pressure code for heating boilers with capacities certified by the National Board of Boiler and Pressure Vessel Inspectors.
Offer the highest BTUH ratings available on the market today for valves in their class (790,000 to 5,999,000 BTUH)
EPDM diaphragm operated (cast iron models) and diaphragm assisted (bronze models) have an effective area approximately 5 times greater than conventional "pop-type" relief valves to help overcome the effects of fouling.
Low differential between opening and closing pressures helps to prevent conditions under which system water might flash to steam and cause hammering
Model 3301 and 4100 Operating Data & Construction
Maximum working pressure 50 PSIG (3.4 bar)
Maximum Operating Temperature 250 F (121 C)
Body: Cast Iron
Diaphragm & Seat: EPDM
Internal Wetted Parts: Brass
Specifications
Item Number | 110033 |
Brand | Bell & Gossett |
Application | Heating |
ASME | Yes |
Capacity | 3300000 BTU/hr |
Connection Type | Threaded |
Material | Cast Iron |
Max Pressure (PSIG) | 125 |
Max. Working Pressure | 50 PSIG |
Pressure Set Point | 30 psi |
Size | 1-1/2" |
SubType | Pressure Release Valve |
Temperature Range (F) | 250°F Max |
Type | Relief Valve |
