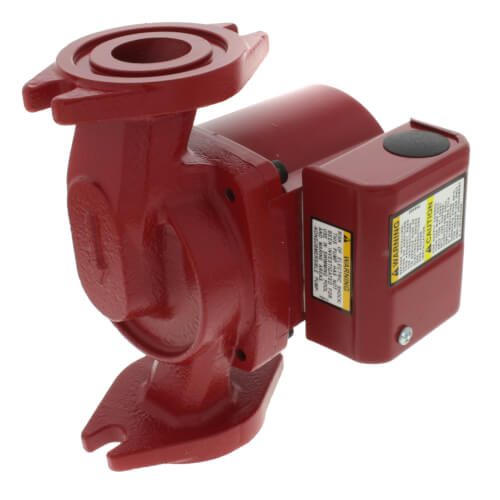

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 103251

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bell & Gossett 103251 Documents

Datasheet Catalog PartS & Accessories Installation Instructions

Overview

Details for 103251

1/25 HP, NRF-22 Red Fox Circulator Pump

A residential or light commercial, maintenance free, axial flanged, in-line, cast iron, wet rotor, circulation pump for hydronic heating systems. The NRF-22 features system liquid lubricated bearings, non-overloading permanent split capacitor motor with impedance protection and quiet operation. This pump may be used for water circulating applications in hydronic and solar systems.

Specifications

Power Rating: 1/25 HP
Pump Body Material: Cast Iron
Electrical Rating: 115V
Motor: 2940 RPM Full Speed
Phase: Single
Full Load Current: 0.8 Amp
Thermal Protection: Impedance
Face: 6 Inches
Inlet/Outlet: Flanged
Best Efficiency: 10 GPM @ 8 Feet of Head
Feet of Head: @ 20 GPM 2
Max. Operating Pressure: 150 PSI (10 bars)
Max. Operating Temperature:
Cast Iron Body: 240°F (115°C)
Brass and Stainless Steel Body: 230°F (107°C)

Specifications

Item Number	103251
Brand	Bell & Gossett
Amperage	0.8
Application	Heating
Connection Size	1-1/2"
Connection Type	Flanged x Flanged
Family	CIRCULATOR PUMPS
Flow Range (GPM)	0-22
Head Range (ft.)	0-15
Hertz	60
Horse Power	1/25
Material	Cast Iron
Max Flow (GPM)	22
Max Head (Ft)	15
Max Pressure (PSI)	150
Max Temp (F)	240°F
Phase	1
Pump Type	Cast Iron Pumps
Pump Type	Circulator Pumps
RPM	2940
Series	NRF Red Fox Series Cast Iron Pumps
Type	Pump
Voltage	115v
Warranty	3 Year
