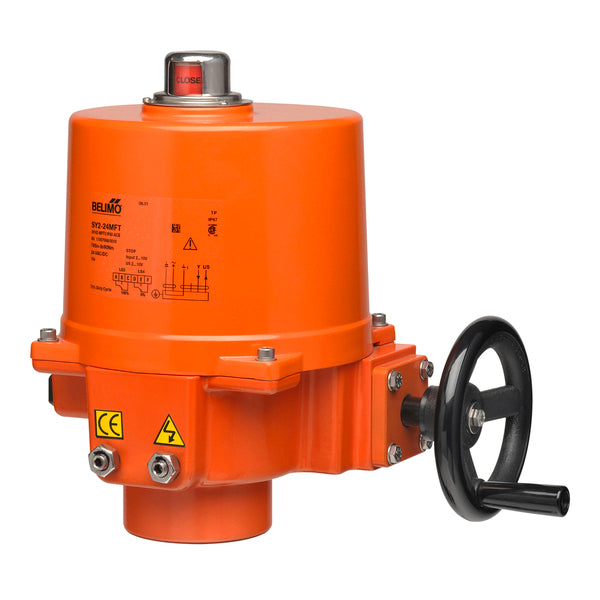

SY6-110 | Valve Actuator | Non-Spg | 120V | On/Off | SW | NEMA 4H | Belimo
Valve Actuator, Non fail-safe, AC 120 V, On/Off, Floating point, 2 x SPDT
Overview
Details for SY6-110
Valve Actuator | Non-Spg | 120V | On/Off | SW | NEMA 4H
Valve Actuator | Non-Spg | 120V | On/Off | SW | NEMA 4H
Application
SY Series actuators are fractional horsepower devices, and utilize full-wave power supplies. Observe wire sizing and transformer sizing requirements. Proportional models CANNOT be connected to Belimo direct coupled (AF, AM, GM…etc) actuator power supplies or any type of half-wave device. You MUST use a separate, dedicated transformer or power supply to power the SY actuator. Please do not connect other automation equipment to the dedicated SY supply source. You MUST use four wires (plus a ground) to control a proportional control SY actuator (See SY Wiring Section).
Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 90
- Auxiliary Switches
- 2 x SPDT
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Protection category
- IP66/67
- Running Time (Motor)
- 34 s
- Voltage AC/DC
- AC 120 V
