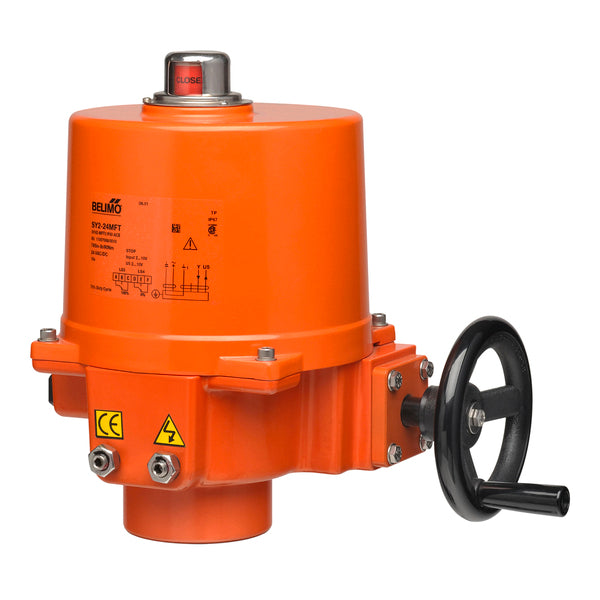

SY4-24MFT | Valve Actuator | Non-Spg | 24V | MFT | SW | NEMA 4H | Belimo
Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, 2 x SPDT, MFT/programmable
Overview
Details for SY4-24MFT
Valve Actuator | Non-Spg | 24V | MFT | SW | NEMA 4H
Valve Actuator | Non-Spg | 24V | MFT | SW | NEMA 4H
Application
SY Series actuators are fractional horsepower devices, and utilize full-wave power supplies. Observe wire sizing and transformer sizing requirements. Proportional models CANNOT be connected to Belimo direct coupled (AF, AM, GM…etc) actuator power supplies or any type of half-wave device. You MUST use a separate, dedicated transformer or power supply to power the SY actuator. Please do not connect other automation equipment to the dedicated SY supply source. You MUST use four wires (plus a ground) to control a proportional control SY actuator (See SY Wiring Section).
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 150
- Controllable Flow Range
- 75B0
- Cv
- 1550
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 10" [250]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- Hand wheel
- Running Time (Motor)
- 20 s
- Voltage AC/DC
- AC/DC 24 V
