Damper Actuator | 1400 in-lb | Electronic Fail-Safe | 24 to 240V | MFT

Description

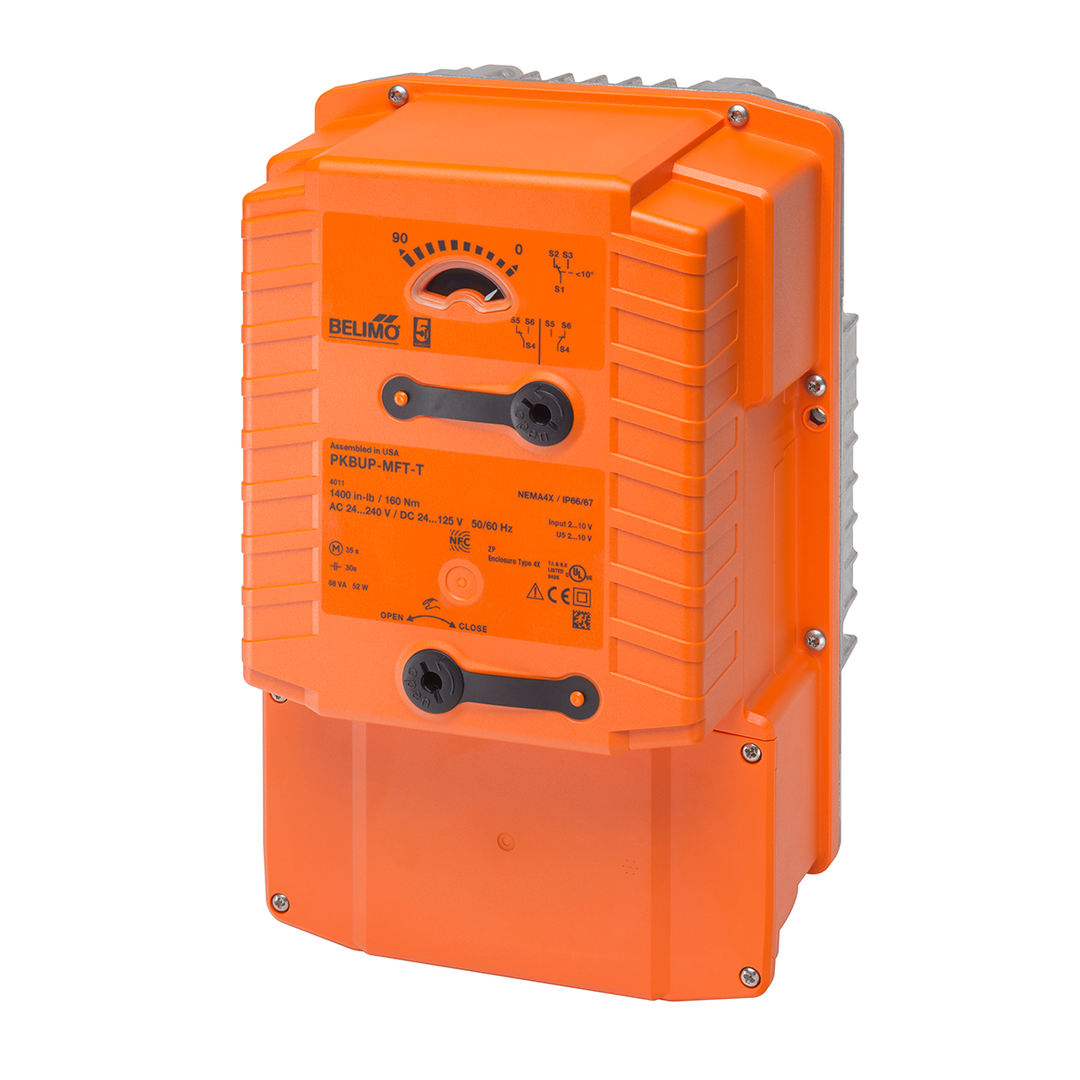

The PKBUP-MFT-T is a damper actuator designed to operate a damper and adjust the air and smoke flow. This device from Belimo’s PKB damper actuator series is made for high torque applications. The housing is designed from an aluminum die-cast polycarbonate and has a NEMA 4 enclosure for indoor and outdoor applications. It’s also equipped with an electronic fail-safe to ensure long service life.

Application

PKB damper actuators from Belimo have visual indicators to make the mounting easier. Thanks to a NEMA 4 enclosure rating, you can use it for both indoor and outdoor applications.

For indoor applications, you should mount the PKBUP-MFT-T upside down. If you want to use it outdoors, you need to install it at or above the horizontal.

Default/Configuration

The default motor running time for PKBUP-MFT-T stands at 35 seconds (for 2 to 10 VDC applications). You can easily adjust the running time from 30 to 120 seconds with the Belimo smartphone app.

Operation

• The PKBUP-MFT-T has 95 degrees rotation angle.
• PKB series damper actuators have a comprehensible visual indicator to make the installation easier.
• The brushless DC motors provide optimal energy consumption and have overload protection throughout 0 to 95 degrees of rotation.
• Includes a thermostat and a smart heater to eliminate condensation inside the damper.
• You can adjust the running time (30 to 120 seconds) using an NFC-compatible smartphone with a Belimo app.
• Has two auxiliary switches.
• Connects via a universal power supply (supply voltage is 24 to 125 VDC and 24 to 240 VAC).

You can learn more about Belimo’s PKB series damper actuators from an included product manual.
