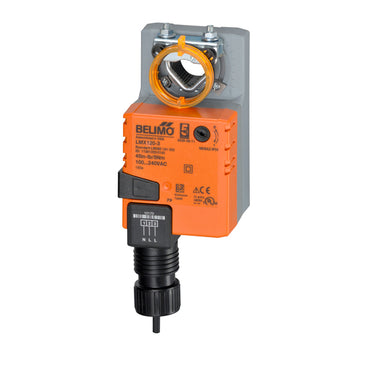

LMX120-3 | Damper Actuator | 45 in-lb | Non-Spg Rtn | 100 to 240V | On/Off/Floating Point | Belimo
Configurable Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC 100...240 V, On/Off, Floating point
Documents and manuals
Belimo LMX120-3 Documents
Overview
Details for LMX120-3
Damper Actuator | 45 in-lb | Non-Spg Rtn | 100 to 240V | On/Off/Floating Point
Damper Actuator | 45 in-lb | Non-Spg Rtn | 100 to 240V | On/Off/Floating Point
Application
For On/Off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.
The actuator is mounted directly to a damper shaft from 1/4” up to 5/8” in diameter by means of its standard universal clamp. Shafts up to 3/4” diameter can be accommodated by an accessory clamp.
Operation
The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.
The LMX series provides 95° of rotation and a visual indicator which indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be disengaged with manual release on the actuator cover.
The LMX120-3 actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.
Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.
Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- Floating/3-point
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 0.5 W
- Power Consumption (Running)
- 2 W
- Running Time (Motor)
- 95 s / 90B0
- Running Time range (Motor)
- 354560 150 s
- Safety Function
- NO
- Torque
- 45 in-lb [5 Nm]
- Voltage AC/DC
- AC 100...240 V
