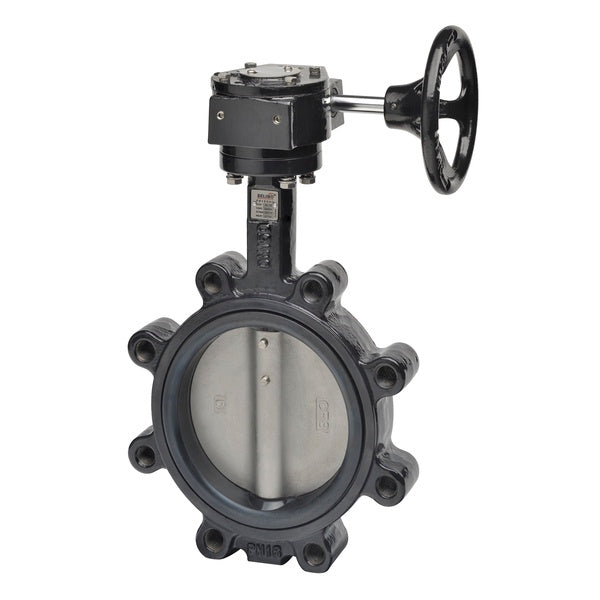

F6250L+ZD6N-S150 | Butterfly Valve | 10" | 2-Way | 5340 Cv | Gear Operators | Belimo
Butterfly Valve, 2-way, DN 250, flange, ps|Butterfly Valve (BFV), 10", 2-way, ANSI Class Consistent with 125, Cv 5340 |Worm gear for butterfly valves DN 125...300
Overview
Details for F6250L+ZD6N-S150
Butterfly Valve | 10" | 2-Way | 5340 Cv | Gear Operators
Butterfly Valve | 10" | 2-Way | 5340 Cv | Gear Operators
Application
Valve is designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications with 0% leakage. Typical applications include cooling tower bypass, primary flow change-over systems, and large air-handler coil control. Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, ready for installation.
Jobsite Note
Valve assembly should be stored in a weather protected area prior to installation. Reference the butterfly valve installation instruction for additional information.
Specifications
- Valve specifications
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 5340
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 10" [250]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Manual
