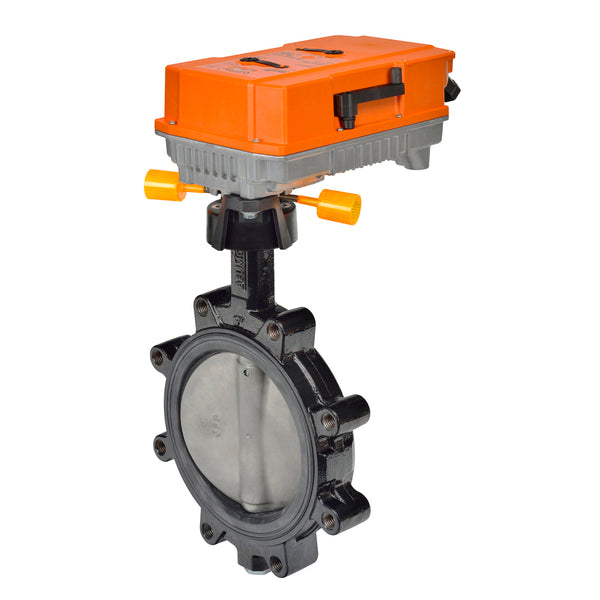

F6200LU+PRBUP-3-T-200 | Butterfly Valve | 8" | 2 Way | 3136 Cv | w/Non-Spring | 24 -240V | On/Off | Belimo
Butterfly Valve (BFV), 8", 2-way, ANSI Class Consistent with 125, Cv 3136 |Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2 x SPDT, terminals
Overview
Details for F6200LU+PRBUP-3-T-200
Butterfly Valve | 8" | 2 Way | 3136 Cv | w/Non-Spring | 24 -240V | On/Off
Application
Valve is designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications with 0% leakage. Typical applications include cooling tower bypass, primary flow change-over systems, and large air handler coil control.
Jobsite Note
Valve assembly should be stored in a weather protected area prior to installation. Reference the butterfly valve installation instruction for additional information.
Technical Data
Service: chilled, hot water, up to 60% glycol
Flow Characteristic: modified equal percentage
Controllable Flow Range: 90° rotation
Size [mm]: 8” [200]
End Fitting: For use with ANSI Class 125/150 flanges
Body: ductile iron ASTM A536
Body Finish: polyester powder coated
Seat: EPDM
Shaft: 420 stainless steel
Bushings: steel, PTFE (typical)
Disc: 304 stainless steel
Body Pressure Rating [psi]: 232
Number of Bolt Holes: 8
Lug Threads: 3/4-10 UNC
Media Temperature Range (Water): -22°F to 250°F [-30°C to 120°C]
Close-Off Pressure: 50 psi
Rangeability: 10:1
Maximum Velocity: 12 FPS
Cv: 3136
Weight: 36.4 lbs [16.5 kg]
Leakage: 0%
Servicing: maintenance free
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 3136
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 8" [200]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 6 W
- Power Consumption (Running)
- 20 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
