AFX24-SR | Damper Actuator | 180 in-lb | Spg Rtn | 24V | Modulating | Belimo
Configurable Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, 2...10 V, modulating

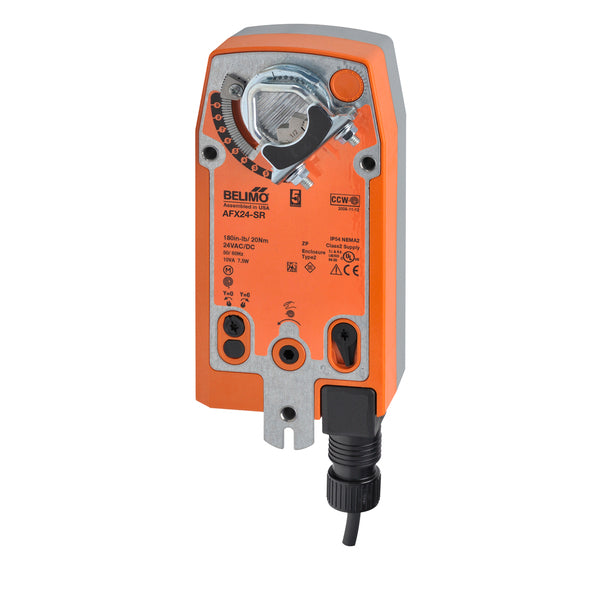

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFX24-SR
Documents and manuals
Belimo AFX24-SR Documents
Overview
Details for AFX24-SR
Damper Actuator | 180 in-lb | Spg Rtn | 24V | Modulating
For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer's specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Maximum of two AF's can be piggybacked for torque loads of up to 266 in-lbs. Minimum 3/4" diameter shaft and parallel wiring.Specifications
- Actuator Type
- Spring return
- Angle of Rotation
- 95
- Control Type
- DC 2...10 V
- Degree of Protection
- 852
- Electrical Connection
- cable
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 5.5 W
- Protection category
- IP54
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 95 s / 90B0
- Torque
- 180 in-lb [20 Nm]
- Voltage AC/DC
- AC/DC 24 V
