AFRB24-IP | Valve Actuator | 180 in-lb | Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP | Belimo

Valve Actuator, Spring return, AC/DC 24 V, modulating, Cloud, communicative, Hybrid, BACnet IP Modbus TCP

Belimo | AFRB24-IP

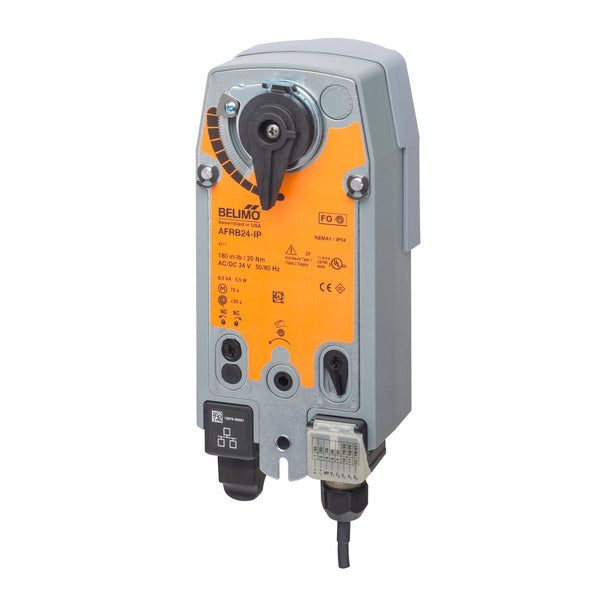

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFRB24-IP
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo AFRB24-IP Documents

Datasheet Installation Instructions More Info

Overview

Details for AFRB24-IP

Valve Actuator | 180 in-lb | Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP

Specifications

Actuator Type
Spring return
Control Type
Communicative
Degree of Protection
IP54 NEMA 1 UL Enclosure Type 1
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
8.5 W
Product Type
Actuator
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
70...220 s
Voltage AC/DC
AC/DC 24 V
