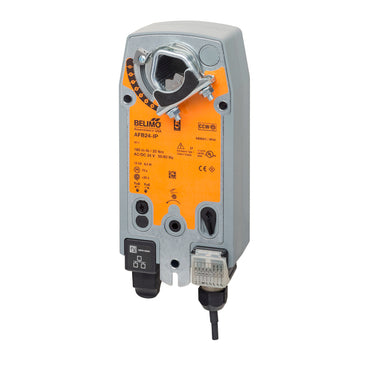

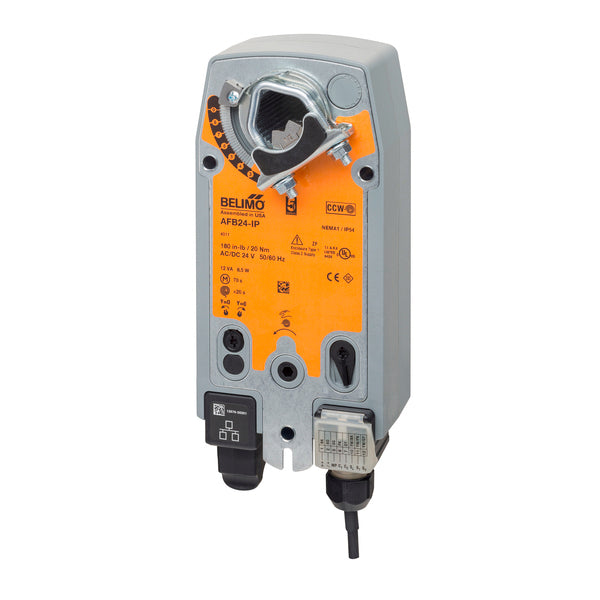

AFB24-IP | Damper Actuator | 180 in-lb | Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP | Belimo

Damper Actuator | 180 in-lb | Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP

Application

For failsafe modulation of dampers in HVAC systems. Actuator sizing should be in accordance with the damper manufactures specifications. The actuator is controlled via the Belimo Cloud, BACnet/IP or Modbus TCP and drives to the position defined by the control variable. Multiple data points can be written and read via the control interface. Local control mode: The actuator receives an analog control signal from a conventional controller and drives to the control position. In addition, using the Belimo Cloud, BACnet/IP or Modbus TCP, various data points can be read and with the exception of the control signal written to the actuator. This Belimo Cloud connected damper actuator has two universal sensor inputs ready for your innovative HVAC applications. The two universal sensor inputs (passive, active, or contact) serve as an analog/digital converter for the digital transmission of the sensor value to a higher level system. Selecting the sensor type is accomplished via connection to the integrated web server (RJ45 connection to the web browser) or directly via the Belimo Cloud. The actuators performance and sensor data is recorded locally with 13 months of storage. This data can be used for analytical purposes, downloaded via csv files, or used in your HVAC application.
