LNX-0602-M | 6-Port Industrial Unmanaged Ethernet Switch | w/2*100Fx (SC) Mulit-mode 2Km | Antaira

6-Port Industrial Unmanaged Ethernet Switch, w/2*100Fx (SC) Mulit-mode 2Km

Antaira | LNX-0602-M

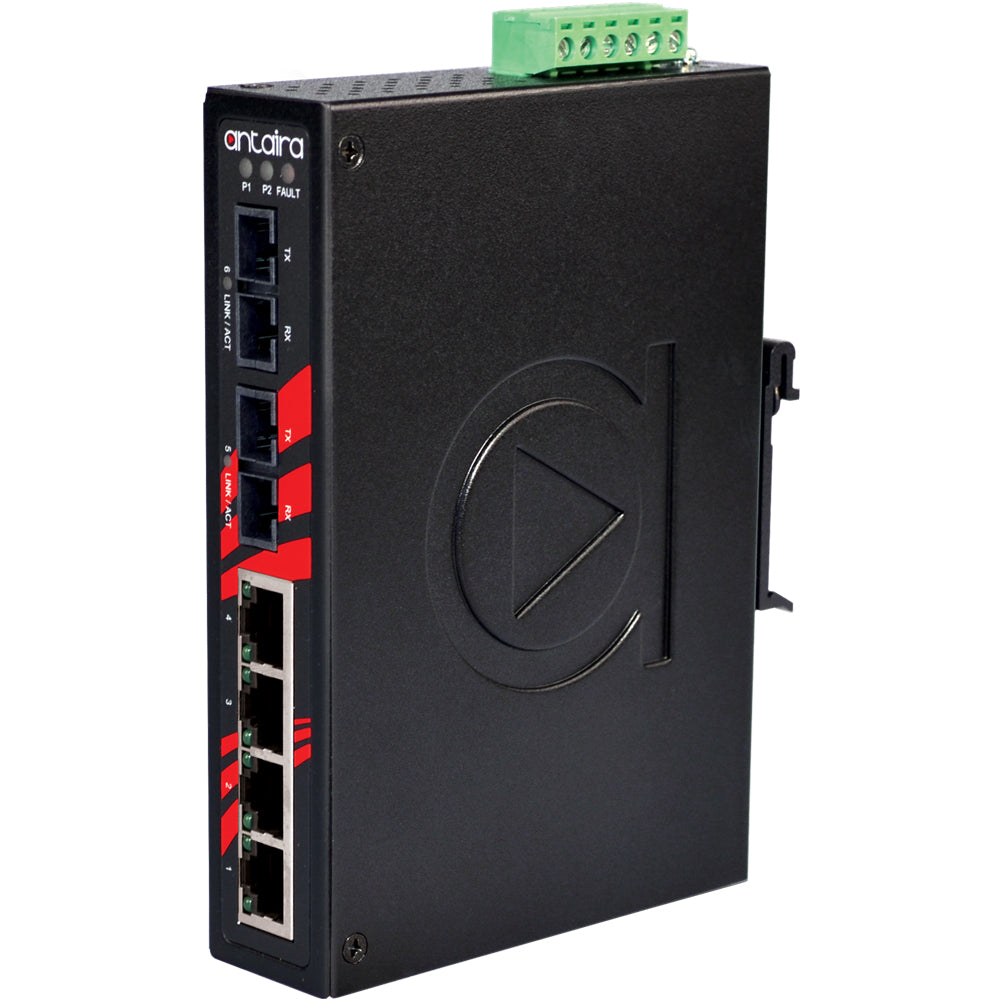

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-0602-M

Documents and manuals

Antaira LNX-0602-M Documents

Overview

Details for LNX-0602-M

6-Port Industrial Unmanaged Ethernet Switch | w/2*100Fx (SC) Mulit-mode 2Km

Antaira’s LNX-0602 series of industrial switches are smart 6-port Industrial Unmanaged Ethernet Switches supporting 4-Port 10/100Tx Fast Ethernet and 2-Port 100Fx of SC or ST type connector and support Multi-mode in 2Km, or Single-mode in 30Km.The LNX-0602 series of industrial switches support 12~48VDC power inputs. This series of indsutrial switches offers an Extended Operating Temperature model (w/-T) which supports -40°C ~ 75°C. These industrial Ethernet switches also supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network.In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.

Features

  • Network broadcast storm protection
  • 4-Port 10/100Tx Fast Ethernet
  • 2-Port 100Fx SC type connector (Multi-mode)
  • Supports Auto MDI/MDI-X Function
  • Store-and-Forward Switching Architecture
  • 2K MAC Address Table
  • Surge Protection: 2,000 VDC support
  • ESD Protection: 6,000 VDC support
  • UL Class I, Division 2 Certified
  • Redundant Power Input Design – 12~48VDC
  • Built-in 1 relay output for Port Break Alarm
  • IP30 Rugged Aluminum Case Design
  • DIN-Rail and Wall Mount support
  • Operating Temperature range: -10° to 70° C
  • 5-Year Warranty

Included

  • LNX-0602-M
  • Mounting Brackets

Specifications

Ambient Relative Humidity
5 to 95%, (non-condensing)
Certifications
FCC, CE, UL/cUL 508, Class 1 Div 2
Connection
1 removable 4-contact terminal block
Dimensions
30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.)
EMI
FCC Class A
EMS
EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8;EN6100-6-2; EN6100-6-4
Fiber Port
2*100Fx SC type connector;Multi-mode (2Km) - 50/125um ~ 62.5/125um
Flow Control
IEEE 802.3x flow control, back pressure flow control
Free Fall
IEC60068-2-32
Green
RoHS Compliant
Housing
Metal, IP30 protection
Input Voltage
12~48VDC, Redundant Input
MAC Table Size
2K
Mounting
DIN-Rail mounting, wall mounting (optional)
Operating Temperature
STD: -10° to 70° C (14° to 158° F)
Overload Current Protection
Slow-Blown Fuse
Power Consumption
7.5 Watts
Processing Type
Store and Forward
Reverse Polarity Protection
Yes
RJ45 Ports
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection;4*10/100Tx
Shock
IEC60068-2-27
Standards
IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3x Flow Control and Back-Pressure
Storage Temperature
-40°C ~ 85°C (-40°F ~ 185°F)
Switching Architecture
Back-Plane (Switching Fabric): 1.0Gbps;Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes
Technology Protocol
CSMA/CD
Transfer Rate
14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
Vibration
IEC60068-2-6
Warranty
5 Years
Wavelength
1310nm (Multi-mode)
Weight
Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs
