PTA2 | Pulse Width (PWM) Input to Analog Output Interface Module | ACI
Pulse Width Modulation Input (0.1 to 10 sec), Analog Output(0-10V), (0.02 to 5, 0.59 to 2.93, 0.1 to 25.5s Selectable)
Documents and manuals
ACI PTA2 Documents
Overview
Details for PTA2

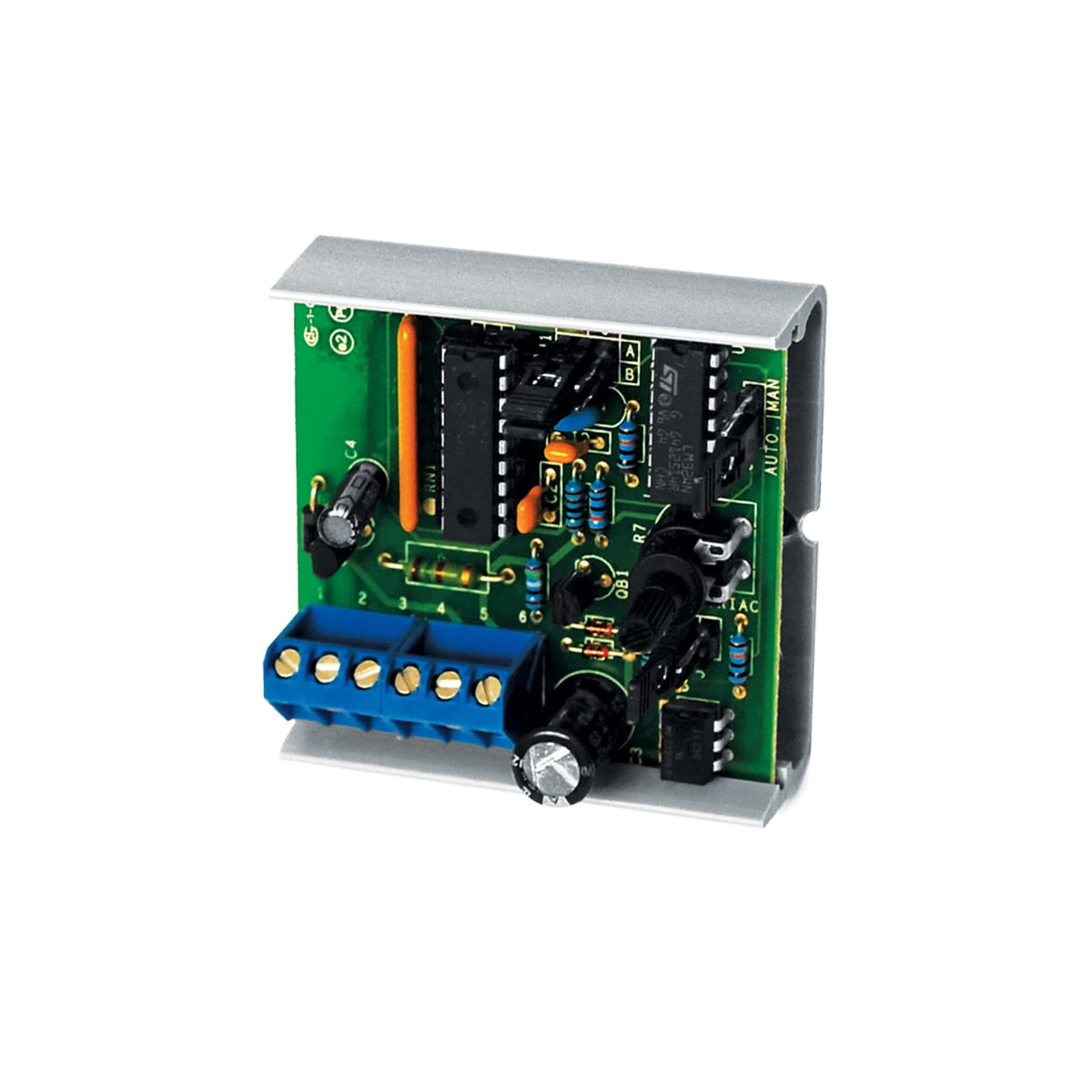

PTA2 | Pulse Width (PWM) Input to Analog Output Interface Module
Description
The PTA2 accepts a timed contact, or solid state closure, from a microprocessor controller and converts it to a linear analog output with 255 steps of resolution. The PTA2 will not wrap around if an excessively long pulse is received. Seven input pulse rates are jumper selectable (between Version 1 and 2). The input signal is optically isolated and can accept either positive or negative polarity. The PTA2 includes triac adapter circuitry (jumper selectable) for a triac input. The PTA2 has a jumper selectable manual override which will allow modulation of the output between 0-10 VDC to verify proper operation of the controlled device. On Version 1, the last output signal is held until the PTA2 receives the end of the next pulsed input signal.
Specifications
| Item Number | PTA2 |
| Brand | ACI |
| Interface | Pulse Width (PWM) Input to Analog Output |
